Beacon Huntress API¶

API has been added for

API
- Application
  - Version
  - Configuration
- Searches
- Results
Interactive API Docs
Coding Example
- Run a Beacon Search

Application¶

Version¶

Beacon Huntress version

Return Values
- title: Application title
- version: Beacon Huntress version number
- description: Beacon Huntress description

Example Code

import requests

url = "http://127.0.0.1:8000/api/application/version"

response = requests.get(url)
val = response.json()
print(val)

Configuration¶

Beacon Huntress configuration

Return Values
- Beacon Huntress Configuration: Beacon Huntress Configuration

Example Code

import requests

url = "http://127.0.0.1:8000/api/application/configuration"

response = requests.get(url)
val = response.json()
print(val)

Searches¶

Quick Cluster¶

Run Beacon Huntress quick cluster search.

Input Values
- log_type: Log Type parameter (Zeek Connection = conn)
- log_dir: Log directory location
- delta: Average callback time in minutes
- call_back: The minimum number of connection callbacks
- percent: The minimum percentage of cluster points
- span_avg: The percentage for the span of EPS
- variance: The maximum percentage of jitter that is allowed
- start_dte: The start date time
- end_dte: The end date time
- zip: Is the file a zip file (True or False)
- verbose: Verbose logging (True of False)
Return Values
- beacon_group: Beacon Huntress run results group
- cnt: Number of potential beacons
- log_file: Beacon Huntress run results log file

Example Code

import requests
import json

url = "http://127.0.0.1:8000/api/searches/quick_cluster"
payload = {
"log_type": "conn",
"log_dir": "/tutorial",
"delta": 20,
"call_back": 10,
"percent": 85,
"span_avg": 12,
"variance": 15,
"start_dte": "",
"end_dte": "",
"zip": False,
"verbose": False
}
payload = json.dumps(payload)

response = requests.post(url, data=payload)
val = response.json()
print(val)

Detail Cluster¶

Beacon Huntress detailed cluster search.

Input Values
- log_type: Log Type parameter (Zeek Connection = conn)
- log_dir: Log directory location
- delta: Average callback time in minutes
- call_back: The minimum number of connection callbacks
- percent: The minimum percentage of cluster points
- spans: The time spans to search in list form (e.g [[0, 5], [2, 15], [15, 35], [30, 60]])
- variance: The maximum percentage of jitter that is allowed
- start_dte: The start date time
- end_dte: The end date time
- zip: Is the file a zip file (True or False)
- verbose: Verbose logging (True of False)
Return Values
- beacon_group: Beacon Huntress run results group
- cnt: Number of potential beacons
- log_file: Beacon Huntress run results log file

Example Code

import requests
import json

url = "http://127.0.0.1:8000/api/searches/detailed_cluster"
payload = {
"log_type": "conn",
"log_dir": "/tutorial",
"delta": 20,
"time_spans": [
    [0,5],
    [2,15],
    [15,35],
    [30,60]
    ],
"call_back": 10,
"percent": 85,
"start_dte": "",
"end_dte": "",
"zip": False,
"verbose": False
}
payload = json.dumps(payload)

# Run Quick Cluster Search
response = requests.post(url, data=payload)
val = response.json()
print(val)

Hierarchical¶

Beacon Huntress hierarchical search.

Input Values
- log_type: Log Type parameter (Zeek Connection = conn)
- log_dir: Log directory location
- delta: Average callback time in minutes
- line_amounts: The amount of lines to process (e.g. [1])
- call_back: The minimum number of connection callbacks
- variance: The maximum percentage of jitter that is allowed
- percent: The minimum percentage of cluster points
- start_dte: The start date time
- end_dte: The end date time
- zip: Is the file a zip file (True or False)
- verbose: Verbose logging (True of False)
Return Values
- beacon_group: Beacon Huntress run results group
- cnt: Number of potential beacons
- log_file: Beacon Huntress run results log file

Example Code

import requests
import json

url = "http://127.0.0.1:8000/api/searches/hierarchical"
payload = {
"log_type": "conn",
"log_dir": "/tutorial",
"delta": 20,
"line_amounts": [
    1
],
"call_back": 10,
"variance": 15,
"percent": 85,
"start_dte": "",
"end_dte": "",
"zip": False,
"verbose": False
}
payload = json.dumps(payload)

# Run Quick Cluster Search
response = requests.post(url, data=payload)
val = response.json()
print(val)

Results¶

Beacon Groups¶

Get Beacon Huntress search groups.

Return Values
- beacon_group: Results group_id to be used for /beacon_groups
- date: Date of search
- beacon_count: Number of potential beacons
- log_file: Results log_file name to used for get_log_file

Example Code

import requests

url = "http://127.0.0.1:8000/api/results/beacon_groups"

response = requests.get(url)
val = response.json()
print(val)

Beacon Results¶

Get or Delete Beacon Results

Input Values
- beacon_group: Beacon Group UUID
Return Values
- ID: Unique row identifier
- Source IP: Source IP address
- Destination IP: Destination IP address
- Port: Destination Port ID
- Score: Clustered score
- DNS: DNS name
- Connection Count: Number of connection for each unique Source IP, Destination IP and Port.
- First Occurrence: Minimum date for each unique Source IP, Destination IP and Port.
- Last Occurrence: Maximum date for each unique Source IP, Destination IP and Port.

Example Code

import requests

url = "http://127.0.0.1:8000/api/results/beacon_results"

# Get Results
response = requests.get(url, params={"beacon_group": "9a42fb53-ceac-44b2-afae-d89d133679e2"})

# Delete Results
#response = requests.delete(url, params={"beacon_group": "9a42fb53-ceac-44b2-afae-d89d133679e2"})

val = response.json()
print(val)

Log File¶

Get or Delete Log File

Input Values
- log_file: Beacon run log file
Return Values
- file_content: Log file content

Example Code

import requests

url = "http://127.0.0.1:8000/api/results/log_file"

# Get Log File
response = requests.get(url, params={"log_file": "log_1752679403"})

# Delete Log File
#response = requests.delete(url, params={"log_file": "log_1752679403"})

val = response.json()
print(val)

Filter Beacon¶

Interactive API Docs¶

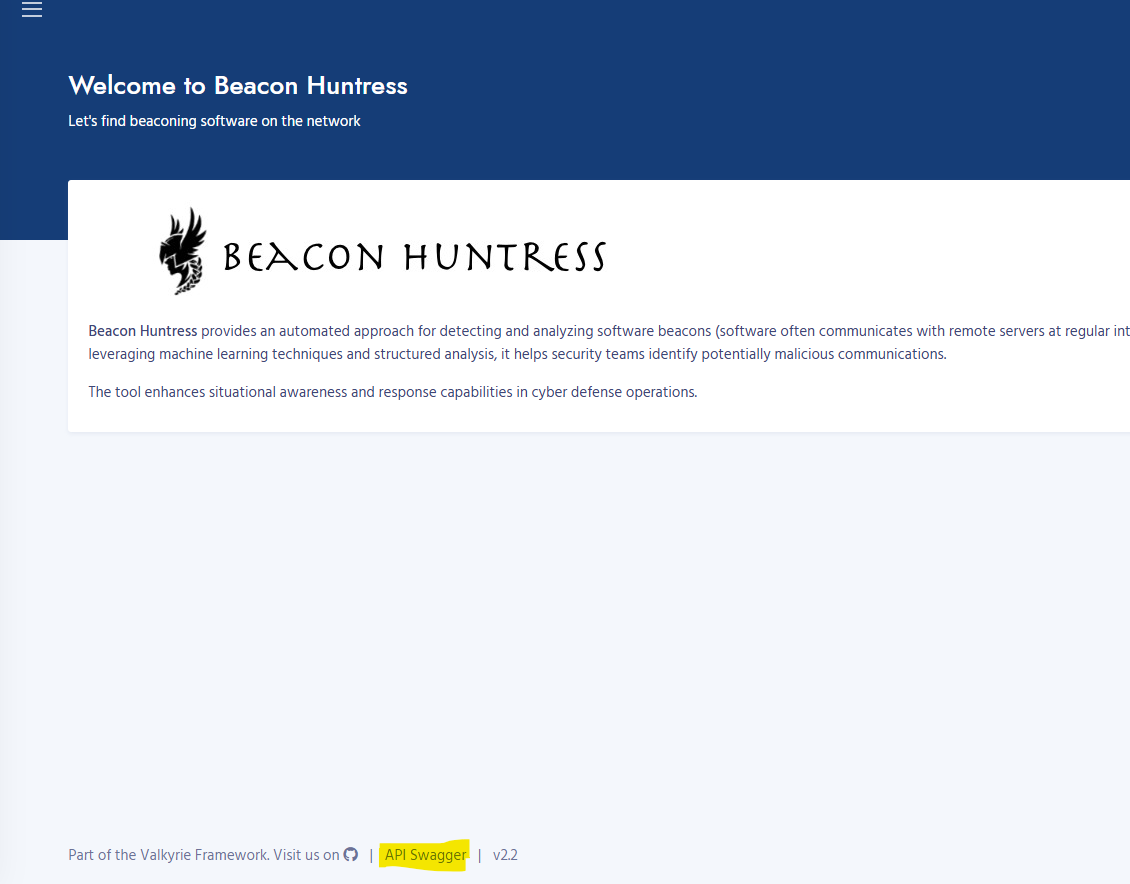

To access the interactive API docs click on the API Swagger link at the bottom of the page

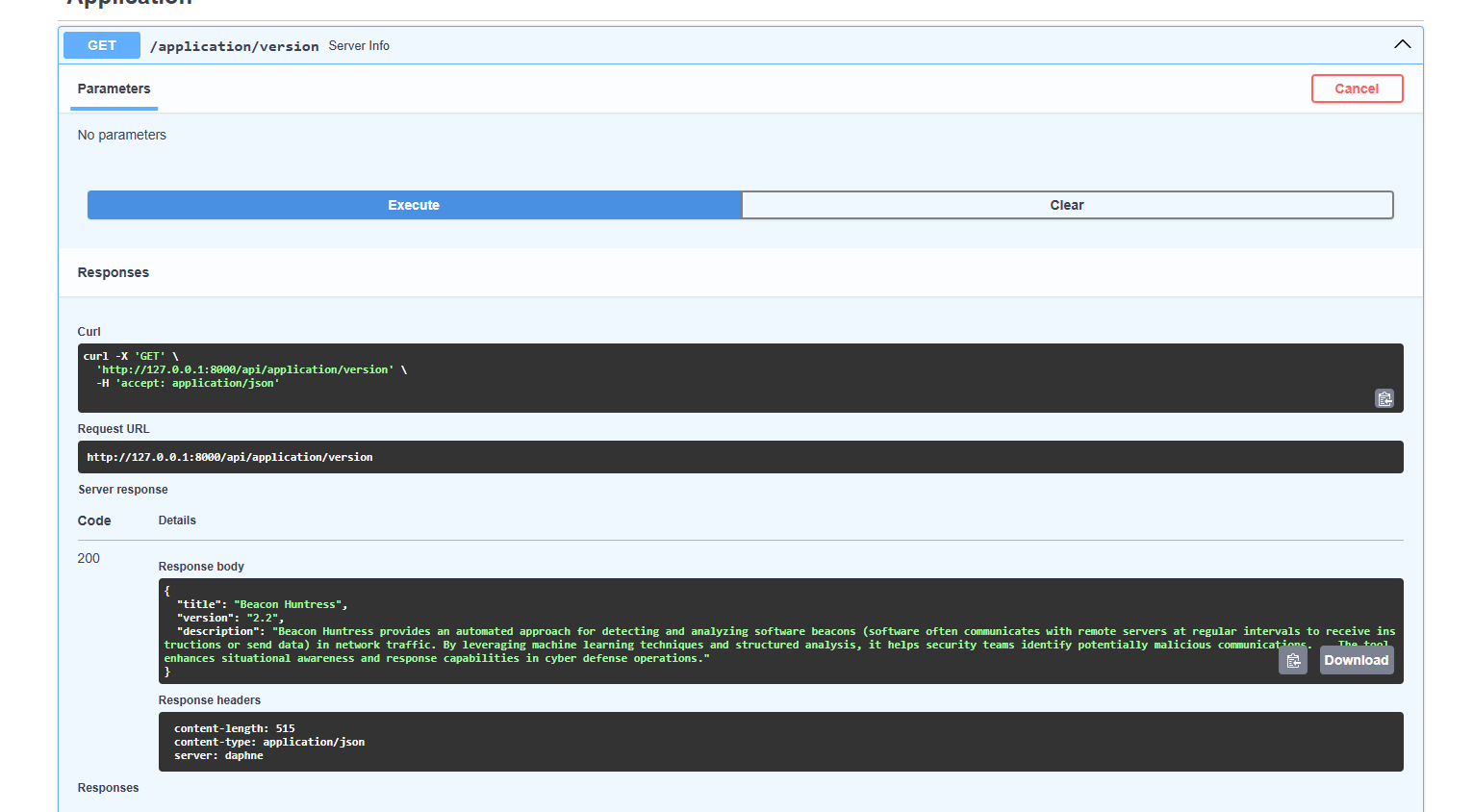

From the docs page you can run any of the api by expanding the requst, clicking the Try it out button, then the execute button and if successful you will receive a response body.

Coding Example¶

Below is an example of running a beacon searching using the API.

Run a Beacon Search¶

Quick cluster search with the tutorial data.

import requests
import json

url = "http://127.0.0.1:8000/api/searches/quick_cluster"
payload = {
  "log_type": "conn",
  "log_dir": "/tutorial",
  "delta": 20,
  "call_back": 10,
  "percent": 85,
  "span_avg": 12,
  "variance": 15,
  "start_dte": "",
  "end_dte": "",
  "zip": False,
  "verbose": False
}
payload = json.dumps(payload)

# Run Quick Cluster Search
response = requests.post(url, data=payload)
val = response.json()

# Get Results
url = "http://127.0.0.1:8000/api/results/beacon_results"
response = requests.get(url,params={"beacon_group": val["beacon_group"]})
print(val["beacon_group"])
print(response.text)
