Beacon Huntress for Jupyter Notebooks

Complete the steps below to set up Beacon Huntress on Jupyter.

Note

Beacon Huntress has Python dependencies that are required for operation. Do not skip steps 5 & 6 from the setup!

Juptyer Notebook Setup

1. Create a folder in Jupyter called beacon_huntress.

2. Copy the /src/lib/jupyter/beacon_huntress.ipynb file from this repository into the beacon_huntress folder in Jupyter.

3. Copy the /src/bin/beacon/beacon.py folder from this repository into Jupyter.

4. Copy the /src/bin/ingest.py folder from this repository into Jupyter.

5. Copy the /src/lib/jupyter/requirements.txt file into the beacon_huntress folder in Jupyter.

6. Open a Jupyter terminal session and execute the code below to install the requirements.txt into a Jupyter kernel called beacon_huntress.


# CREATE VIRTUAL ENV
python3 -m venv beacon_huntress

# ACTIVATE VIRTUAL ENV
source $HOME/beacon_huntress/bin/activate

# INSTALL REQUIREMENTS FILE
pip3 install -r beacon_huntress/requirements.txt

# LOAD KERNEL TO JUPYTER
sudo ipython kernel install --name "beacon_huntress"

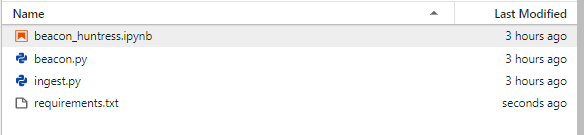

After everything is installed you should see this structure:

Run Jupyter Notebook

Open beacon_huntress.ipynb inside a Jupyter notebook. Run the steps below.

1. Run the BUILD BRONZE DATA LAYER shell.

2. src_loc (string)
   Raw Bro/Zeek logs folder.

3. bronze_loc (string)
   Bronze folder location. Folder where data will be compressed and converted to Parquet format.

import ingest

# BUILD BRONZE DATA LAYER
ingest.build_bronze_layer(
    src_loc="data/raw/data",
    bronze_loc="data/bronze/zeek/raw/parquet/mc3"
    )

1. Run the CREATE FILTERED FILES shell to filter files.

2. src_loc (string)
   Raw Bro/Zeek logs folder.

3. dest_exclude_file (string)
   Destination folder location for non-matching filters. Matches are excluded from the results..
   Use a unique folder name at the end to identify your filter - a data folder will be appended automatically.
   Pass a blank double quote ("") to skip the creation of an exclude file.

4. port_filter (list)
   Ports that you want to include, in list format.

# CREATE FILTERED FILES
# SEE README.MD FOR ADDITIONAL OPTIONS
ingest.build_filter_files(
src_loc = "data/bronze/zeek/raw/parquet/mc3",
dest_exclude_file = "data/bronze/zeek/filtered/parquet",
port_filter = [80, 443]
)

1. Run the BUILD DELTA FILES shell to build the delta files.

2. src_file (string)
   Source folder or file location.


3. delta_file_loc (string)
   Destination folder or file location for delta files.


# BUILD DELTA FILES
ingest.build_delta_files(src_loc = "data/bronze/zeek/filtered/parquet",
                     delta_file_loc = "data/silver/delta")

1. Choose the algorithm that you want to run and configure the settings. Some examples are included below, but see the Beacon Algorithms page for more details.

2. Agglomerative Clustering

   import beacon

   # AGGLOMERATIVE CLUSTERING
   # SLOW BEACON
   beacon.agglomerative_clustering(
      delta_file = "data/silver/delta/delta_1655318432.parquet",
      delta_column = "delta_mins",
      max_variance = .12,
      min_records = 10,
      cluster_factor = .70,
      line_amounts = [1],
      min_delta_time = 1200000
   )


3. DBSCAN Clustering

   import beacon

   # DBSCAN
   # SLOW BEACON
   beacon.dbscan_clustering(
       delta_file = "data/silver/delta/delta_1655318432.parquet",,
       delta_column = "delta_mins",
       spans = [[0, 5], [2, 15], [15, 35], [30, 60]],
       minimum_delta = 20,
       minimum_points_in_cluster = 10,
       minimum_likelihood = 0.70
   )


4. DBSCAN by Variance

   import beacon

   # DBSCAN by VARIANCE
   # SLOW BEACON
   beacon.dbscan_by_variance(
       delta_file = "data/silver/delta/delta_1655318432.parquet",
       delta_column = "delta_mins",
       avg_delta = 20,
       conn_cnt = 10,
       span_avg = 15,
       variance_per = 15,
       minimum_likelihood = 70
   )
