LCK04-J. Do not synchronize on a collection view if the backing collection is accessible

The Java Tutorials, Wrapper Implementations [ Java Tutorials ], warns about the consequences of failing to synchronize on an accessible collection object when iterating over its view:

It is imperative that the user manually synchronize on the returned Map when iterating over any of its Collection views rather than synchronizing on the Collection view itself.

Disregarding this advice may result in nondeterministic behavior.

Any class that uses a collection view rather than the backing collection as the lock object may end up with two distinct locking strategies. When the backing collection is accessible to multiple threads, the class that locked on the collection view has violated the thread-safety properties and is unsafe. Consequently, programs that both require synchronization while iterating over collection views and have accessible backing collections must synchronize on the backing collection; synchronization on the view is a violation of this rule.

Noncompliant Code Example (Collection View)

This noncompliant code example creates a HashMap object and two view objects: a synchronized view of an empty HashMap encapsulated by the mapView field and a set view of the map's keys encapsulated by the setView field. This example synchronizes on setView [ Java Tutorials ].

private final Map<Integer, String> mapView =
    Collections.synchronizedMap(new HashMap<Integer, String>());
private final Set<Integer> setView = mapView.keySet();

public Map<Integer, String> getMap() {
  return mapView;
}

public void doSomething() {
  synchronized (setView) {  // Incorrectly synchronizes on setView
    for (Integer k : setView) {
      // ...
    }
  }
}

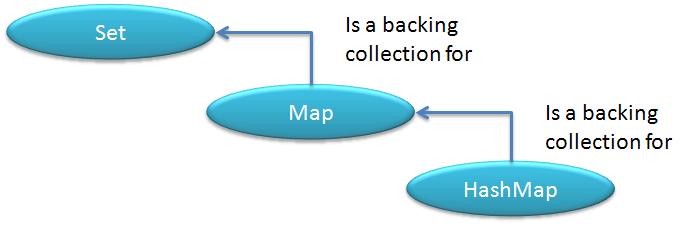

In this example, HashMap provides the backing collection for the synchronized map represented by mapView , which provides the backing collection for setView , as shown in the following figure.

The HashMap object is inaccessible, but mapView is accessible via the public getMap() method. Because the synchronized statement uses the intrinsic lock of setView rather than of mapView , another thread can modify the synchronized map and invalidate the k iterator.

Compliant Solution (Collection Lock Object)

This compliant solution synchronizes on the mapView field rather than on the setView field:

private final Map<Integer, String> mapView =
    Collections.synchronizedMap(new HashMap<Integer, String>());
private final Set<Integer> setView = mapView.keySet();

public Map<Integer, String> getMap() {
  return mapView;
}

public void doSomething() {
  synchronized (mapView) {  // Synchronize on map, rather than set
    for (Integer k : setView) {
      // ...
    }
  }
}

This code is compliant because the map's underlying structure cannot be changed during the iteration.

Risk Assessment

Synchronizing on a collection view instead of the collection object can cause nondeterministic behavior.

Automated Detection

Some static analysis tools are capable of detecting violations of this rule.
