Player: Designing User Interfaces

Overview

Player is the centralized interface where participants, teams, and administrators go to engage in a cyber event. In Player, participants view teams, applications, virtual environments, and third-party applications. The event experience is highly customizable by content developers.

Think of Player as the front door to an event running on Crucible. Player is meant to:

• Provide a platform for individual participants on a team to view content in an exercise.
• Allow for quick navigation between various applications in the Crucible framework.
• Allow administrators to set what teams can see what applications.

Applications can use Player roles and permissions as needed. Notifications can be sent to individual users, teams, or the entire exercise by an administrator or an application with proper permissions.

Player is not meant to:

• Control any authentication or content within any application that it displays in a content panel.
• Provide any mechanisms for individual applications to communicate with each other.
• Provide any default applications. However, some common applications can be consumed within an exercise.

Administrator User Guide

A Player administrator will see the Administration navigation bar on the left. If you have the appropriate permissions, here are the steps to switch to the administrator view in Player:

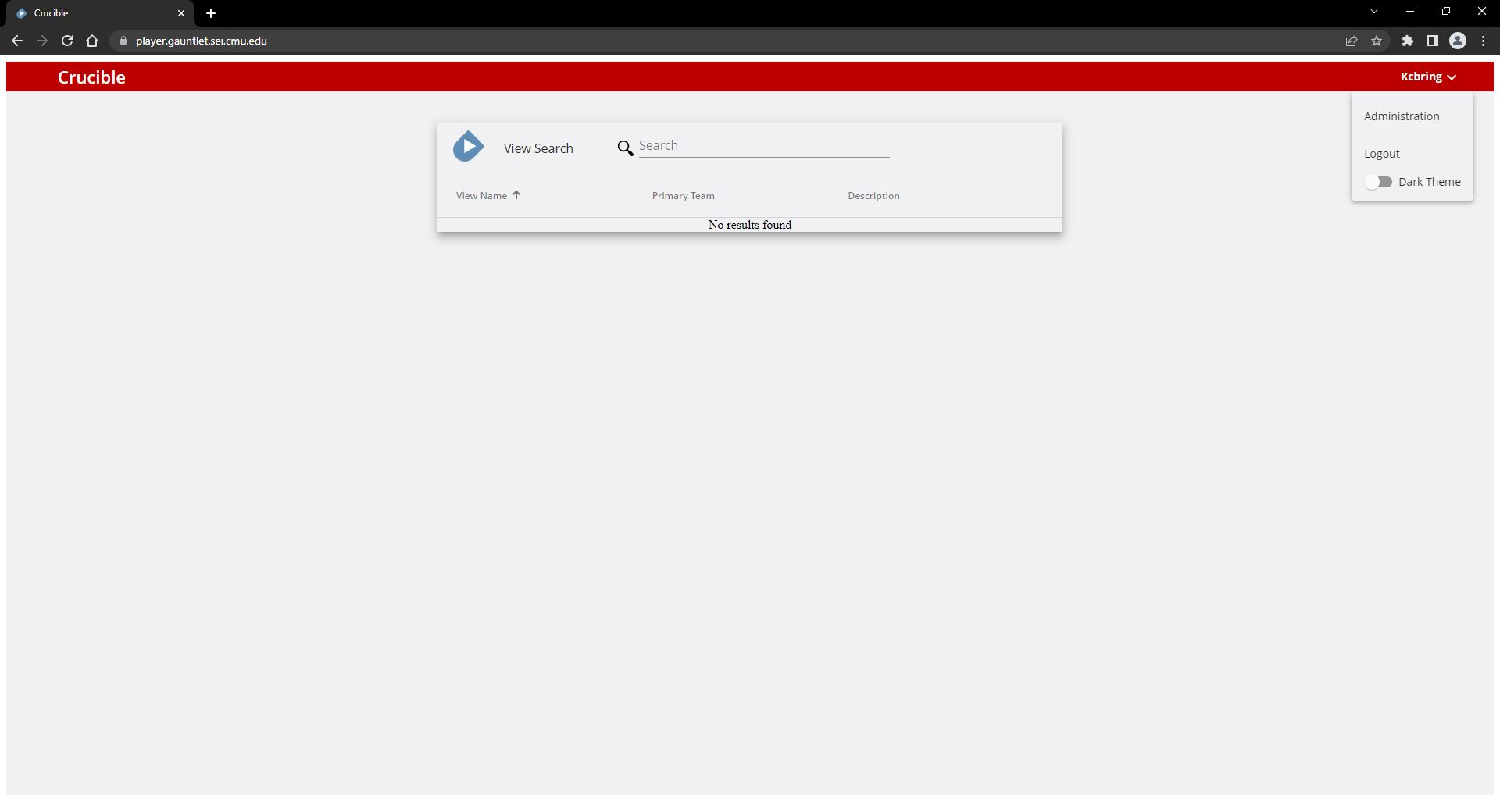

1. In the top-right corner, click the dropdown next to your username.
2. Click Administration.

Manage Views

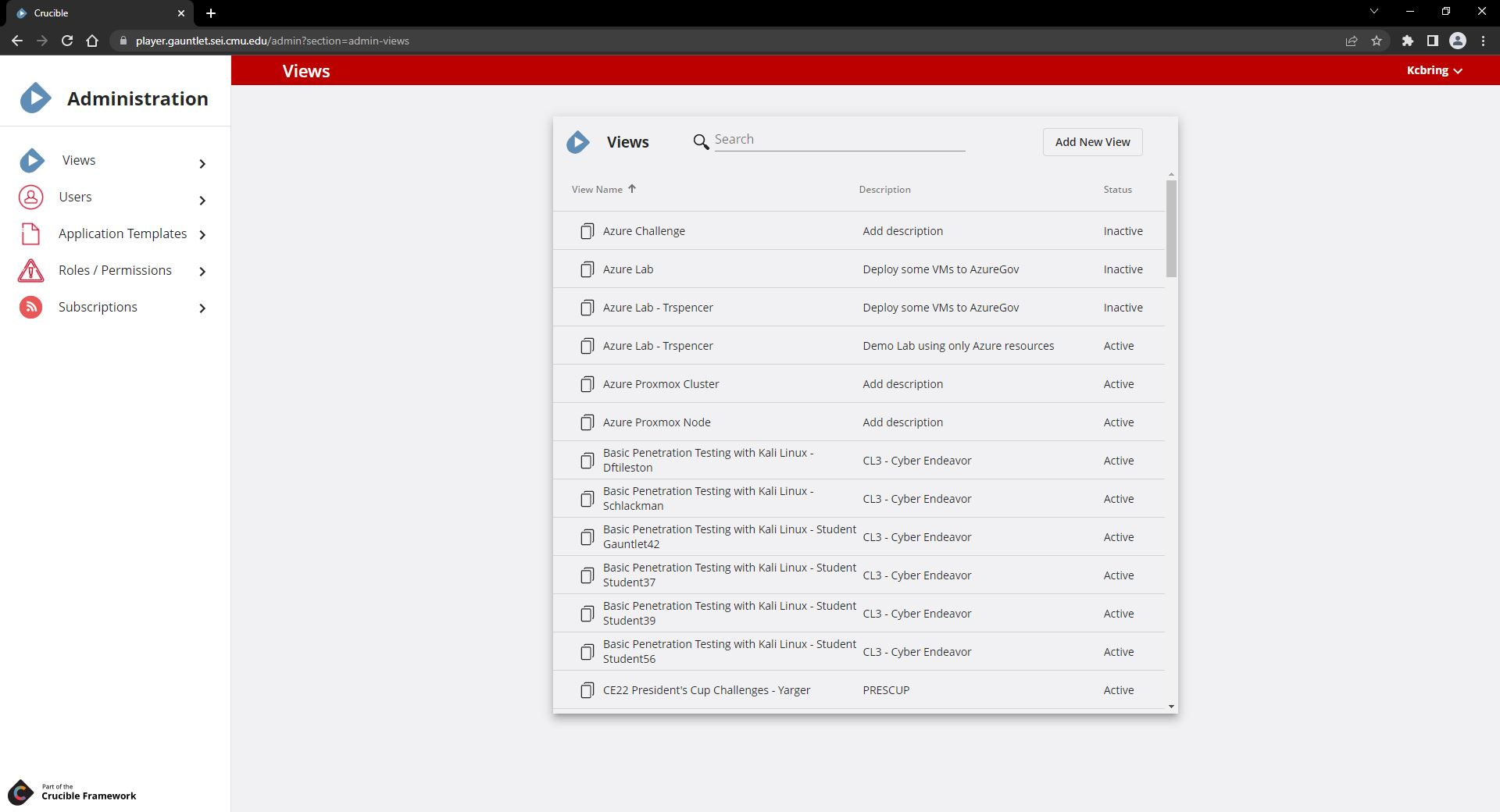

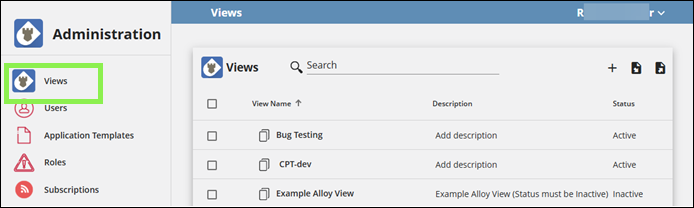

Views is where a Player view administrator adds a new view and browses existing views. Follow the procedures below to create a new view in Player. These instructions assume that you have been given the appropriate permissions in Player to create a view.

If you have not already done so, in the dropdown next to your username, select Administration.

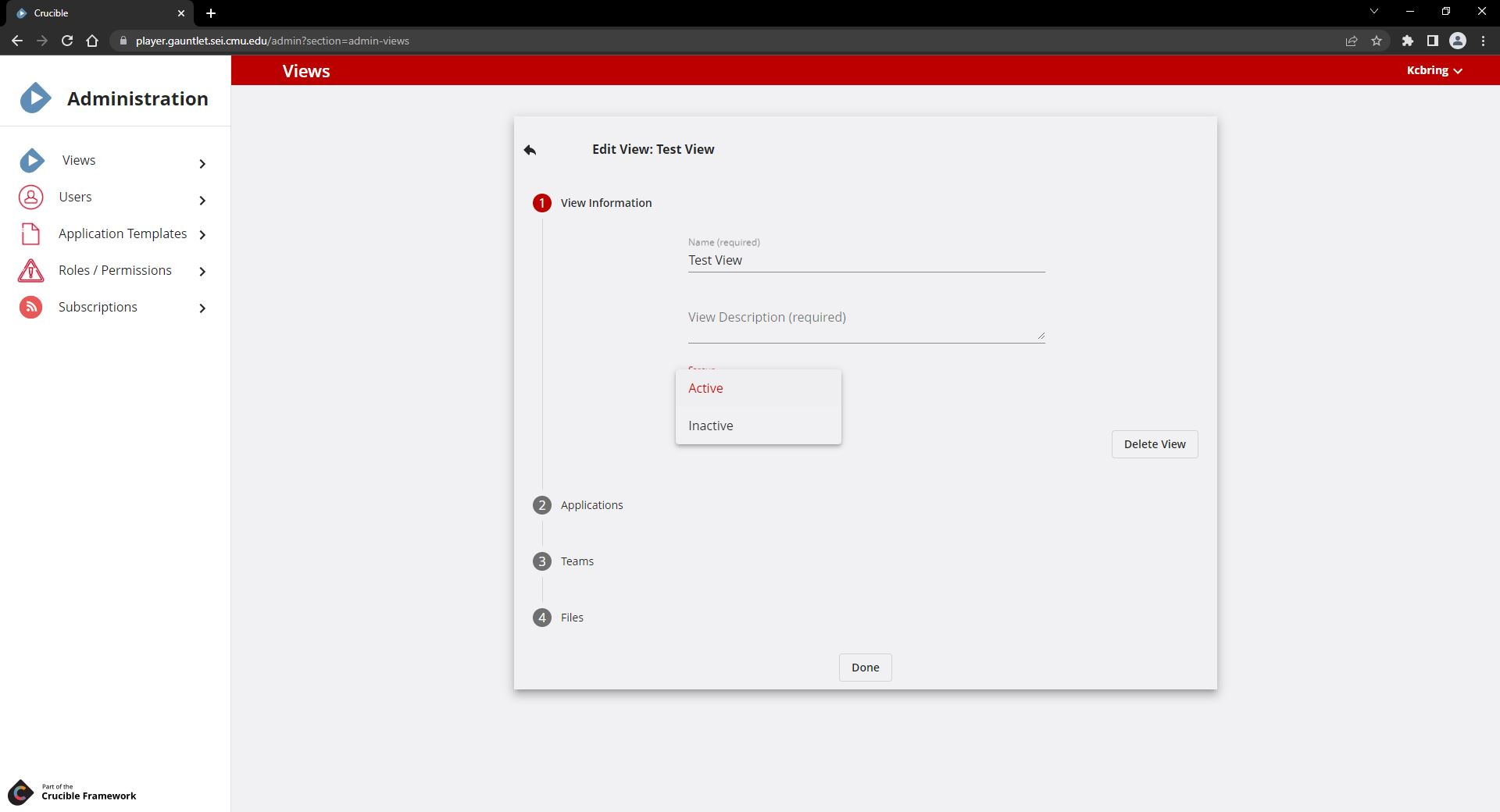

Enter View Information

1. Under Views, click Add New View.

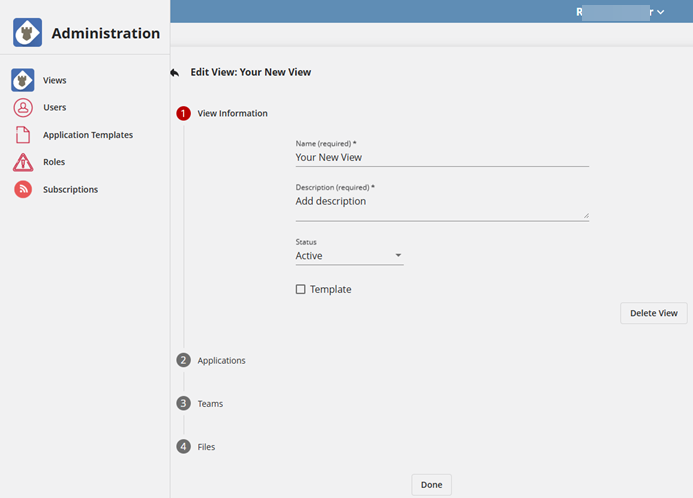

2. Add a Name and View Description.
3. In the Status dropdown, select Active or Inactive.
   • Active means that the new view is available for use immediately.
   • Inactive means that the new view will be cloned in Alloy.
4. Select Applications.

Assign Application Templates

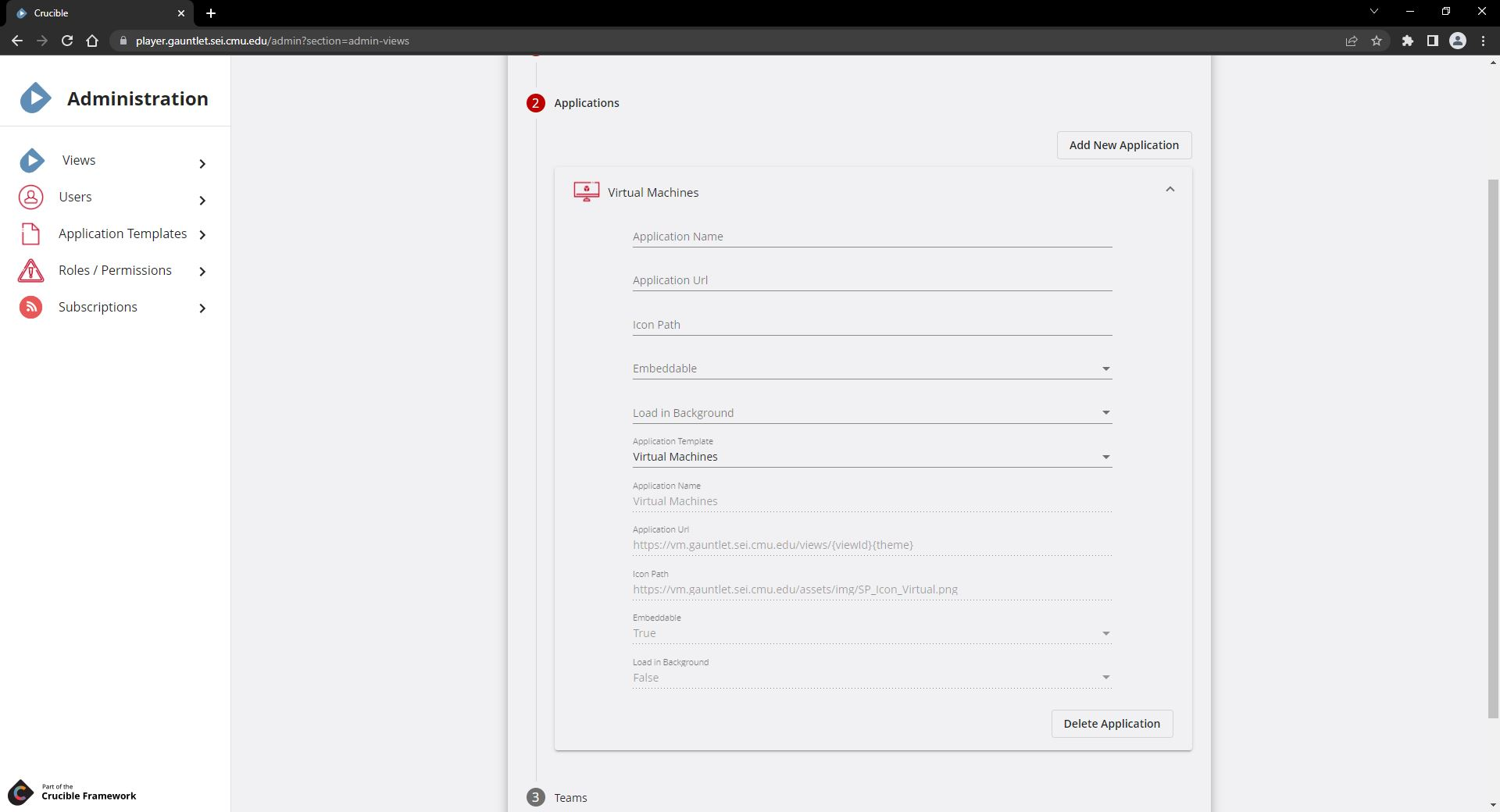

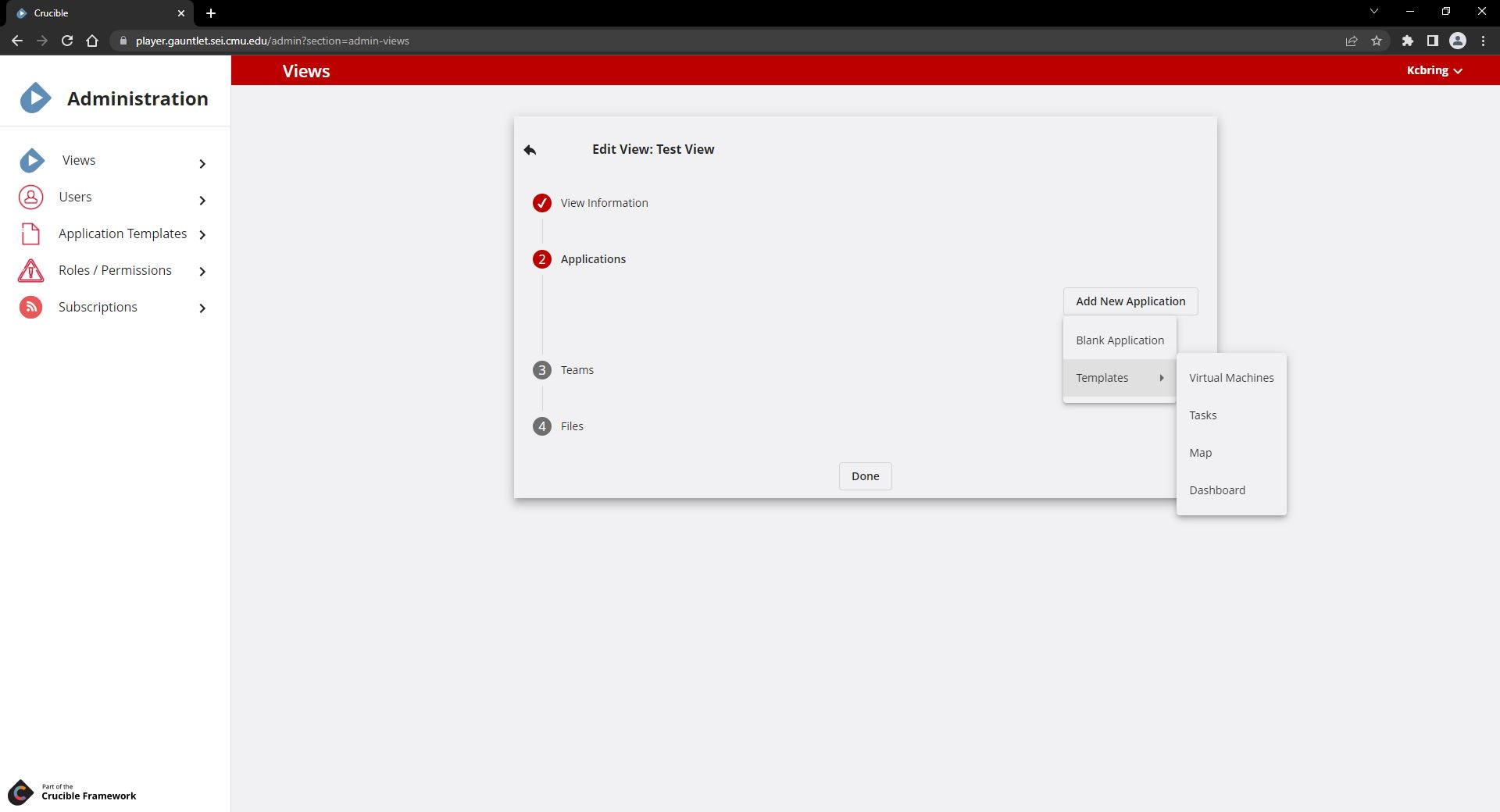

1. Under Applications, click Add New Application. Here, you can add a blank application or an application based upon an existing app template.
   • Blank Application: Adding a blank application requires you to enter the configuration settings manually. These settings can't be applied in another view; they are one-time use only.
   • Template: You should have several application templates available to choose from. These are templates that you or another administrator have created to use over and over. The configuration settings are set in the template; the template can be used many times. Application template settings can be overridden for a particular view.
2. Click Teams.

Add Teams

1. Click Add New Team. Multiple teams can be added to a view.

2. Enter a Team Name.

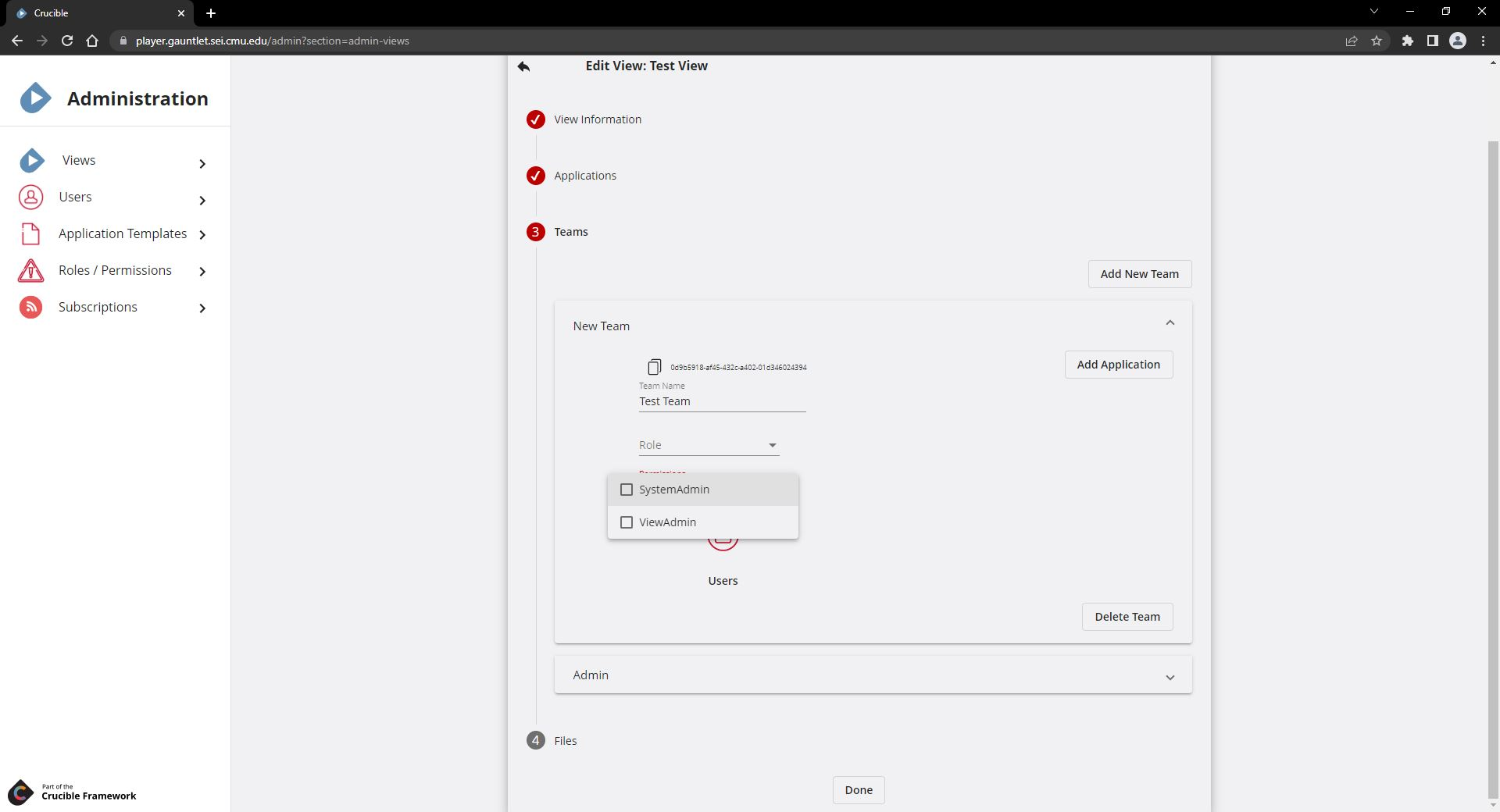

3. Assign a Role to the team.

4. Assign Permissions to the team. Each team can be assigned special permissions. You may want to have a team of "admins" who can troubleshoot views in addition to teams comprised of regular users who are participating in the simulation.

1. Click the User icon to select users to add to the new team.

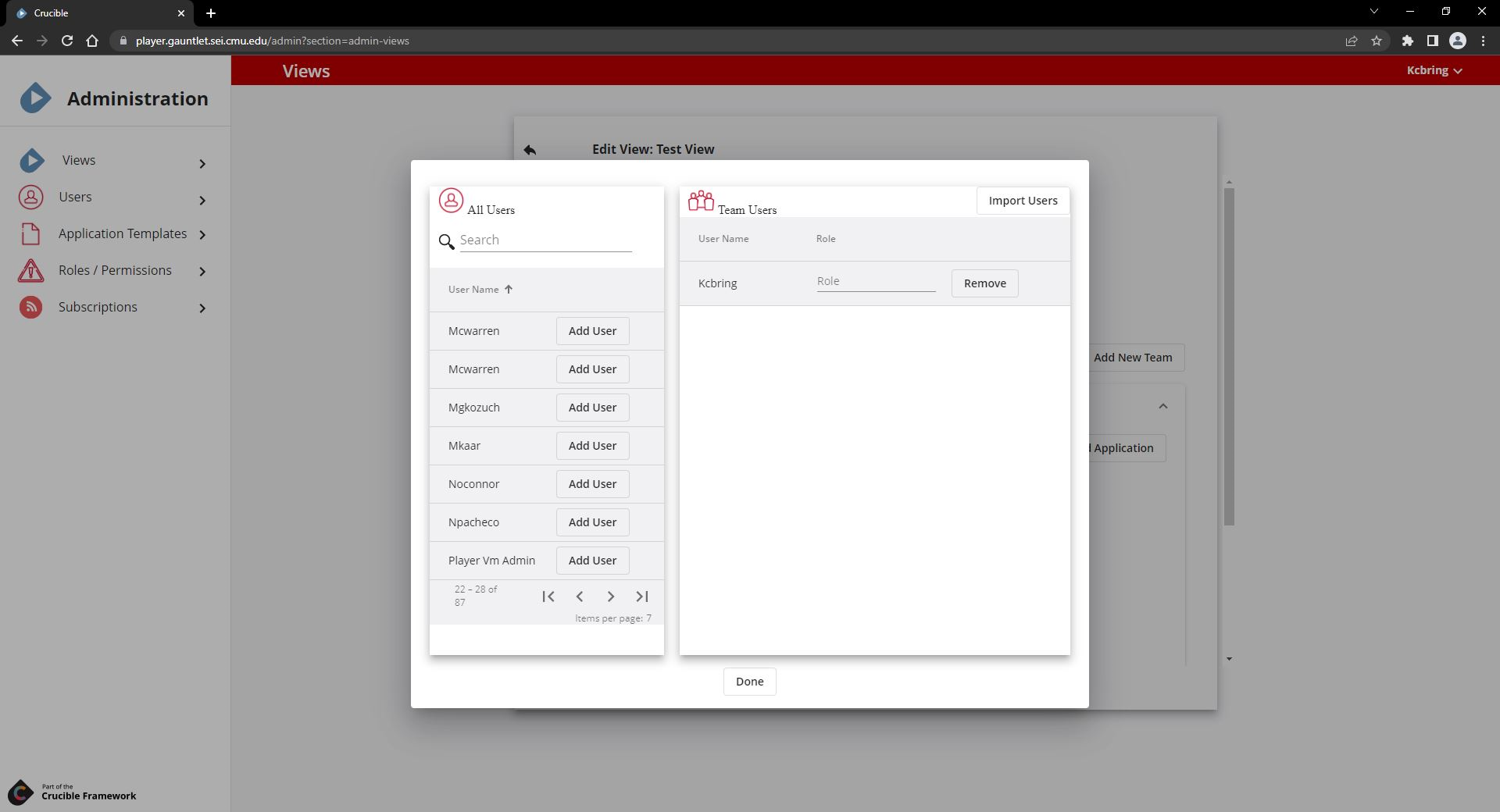

2. Search for the user whom you want to add.

3. Click Add User to move the user from All Users to Team Users.
4. Under Team Users, you can assign a Role to the user at this time.

5. Click Done when you are finished adding users to the team.

6. Assign applications to the new team.

7. Next to the new team, click Add Application. Select an application from the list. These are the applications you added above. Each team you create gets a list of applications displayed in the Player application bar in the order defined here.

Upload Files

In this step, View Administrators upload a single file or multiple files simultaneously to a View which can be added as an application and attached to a team.

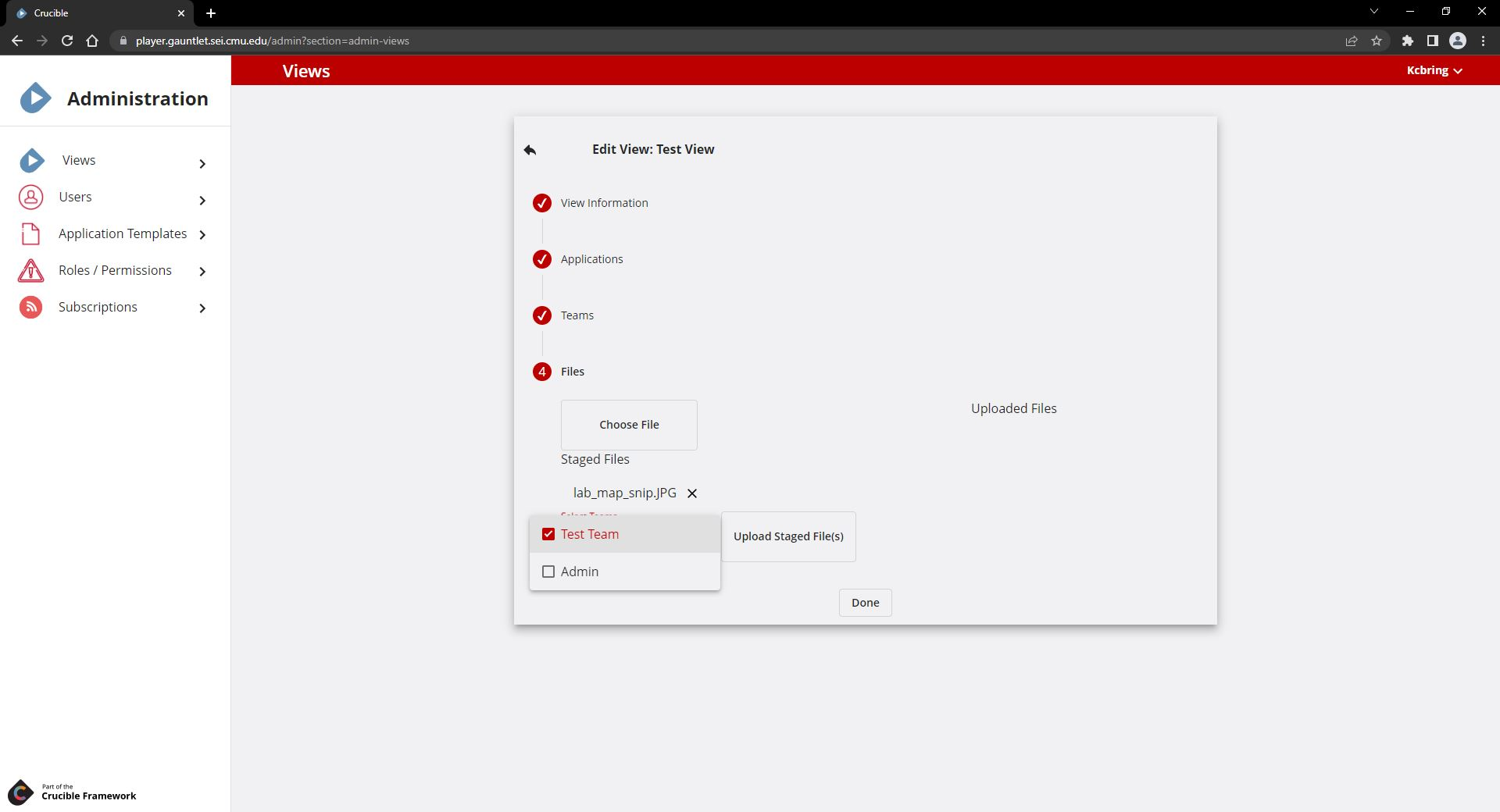

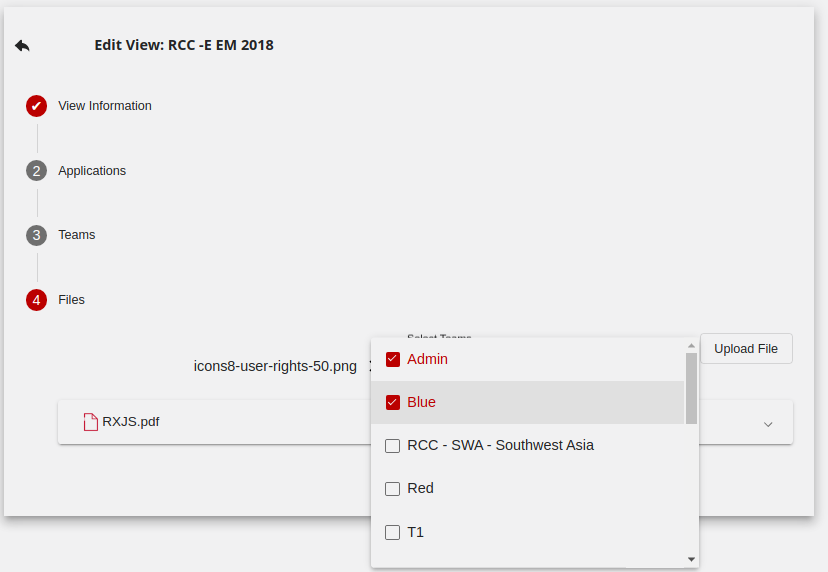

1. Under Files, click Choose File and select the file you want to upload. The file appears under Staged Files - it has not been uploaded yet.
2. Select the Team(s) that you want to access the file and click Upload Staged File(s).
3. The file appears under Uploaded Files. From here, you can: Download the file, Delete the file, Copy Link to the file, Edit the name and team of the file, and Add File as Application.
4. After adding the file as an application you have to return to Step 3 Teams and add that application - the newly uploaded file - to a team just as you would add any new application.
5. Click Done when you are finished adding or updating the view.

Configure Users

Users are only available in Player after they have successfully authenticated via the Identity server and opened Player in their browser. Users and/or teams can be assigned any set of Permissions:

Assign Roles

Users and/or teams can be assigned to a Role, which is a group of permissions. More about roles as future Player development is completed. Only a SystemAdmin can create roles.

Assign Permissions

• SystemAdmin: can edit anything in Player; SystemAdmin permissions are given by existing SystemAdmin.
• ViewAdmin: can edit anything within a View that they have permissions.

A SystemAdmin creates the View and assigns ViewAdmin permissions to specific teams who can now edit that View.

Important! Only users who have the SystemAdmin permission can view the Administration screen and the Administration nav bar (Views, Users, Application Templates, Roles / Permissions).

Create Application Templates

An app template contains the settings associated with an app that is added to a team's view. An app template can be created for common apps that are then added to a view. Default settings that are part of the app template can be overridden by a view admin if needed. An app template can be used by any view admin when adding apps to a particular view. Think of app templates as helpers for configuring common Crucible apps.

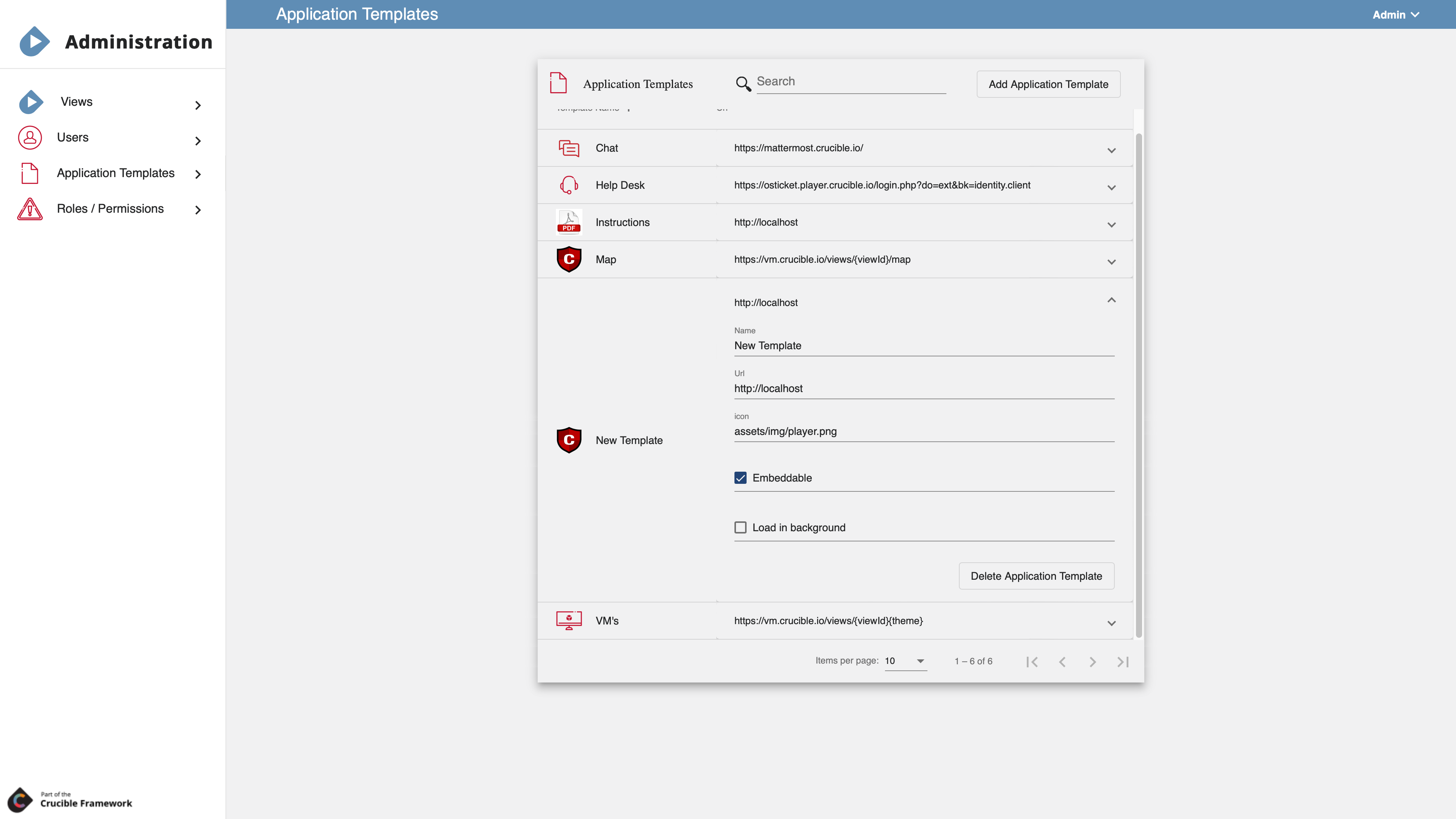

Follow the procedures below to create a new app template in Player. These instructions assume that you have been given the appropriate permissions in Player to create a view.

If you have not already done so, in the dropdown next to your username, select View Administration.

1. Under the Administration nav panel, select Application Templates.
2. Click Add Application Template.
   • Enter a Name for the app template.
   • Enter a URL for the app template.
   • Enter the path for the icon.
3. Enable embeddable if desired. Ebeddable is a true/false attribute that tells Player whether or not the app is supported by iFrames. The Mattermost chat, for example, is not embeddable and must be opened in a separate browser tab.
4. Enable Load in background if desired. Load in background is a true/false attribute that tells Player to load the app in a hidden iFrame when Player loads. This is important for some apps that may require some initialization.

Define Roles and Permissions

From the Administration section of Player, users and/or teams can be assigned any set of Permissions:

Define Roles Users and/or teams can be assigned to a Role, which is a group of permissions. Roles are a predefined set of permissions that admin can create for ease of administrating.

Define Permissions Permissions can be created by admin as well. Player uses two established permissions, SystemAdmin and ViewAdmin.

SystemAdmin: can edit anything in Player; SystemAdmin permissions are given by existing SystemAdmin.

ViewAdmin: can edit anything within a View that they have permissions.

Subscriptions

Subscriptions allow a Player administrator to configure client applications to be notified when supported actions occur within the Player API. Also known as Webhooks, this allows for arbitrary applications to respond to actions taken in Player and configure themselves as necessary. This is commonly used for applications to support on-demand Player events in conjunction with Alloy. For example, the VM API supports subscribing to ViewCreated and ViewDeleted in Player.

When an on-demand event is started in Alloy, it creates a new View in Player. If a subscription is configured, Player notifies VM API of the new View and it ensures that any Maps that were set up for the parent View are made available in the newly created View. This allows for Maps to be used in on-demand events.

When the event is ended, it recieves the ViewDeleted notification and cleans up. Similarly any application can be configured to subscribe to these notifications and support on-demand events without Player code having to be added for each application specifically.

When adding a Subscription, you must specify:

1. Name - The name of the Subscription, for display purposes
2. Callback URL - The URL that the recieving application expects notifications from Player to be sent to
3. Client ID - The ID of a client in the OAuth2/OIDC server that is used for authentication in the environment. This client should support the Client Credentials grant and be authorized to include whatever scopes the receiving application requires to call it's Callback URL endpoint. For the VM API, it's default required scope is player-vm-privileged. This is the privileged scope that has elevated permissions and should not be the same as the scope used by the normal VM UI client.
4. Client Secret - The secret required to authenticate witht he Client ID specified
5. Events - The Player events that this application would like to be notified about, such as ViewCreated and ViewDeleted

User Guide

Top Bar

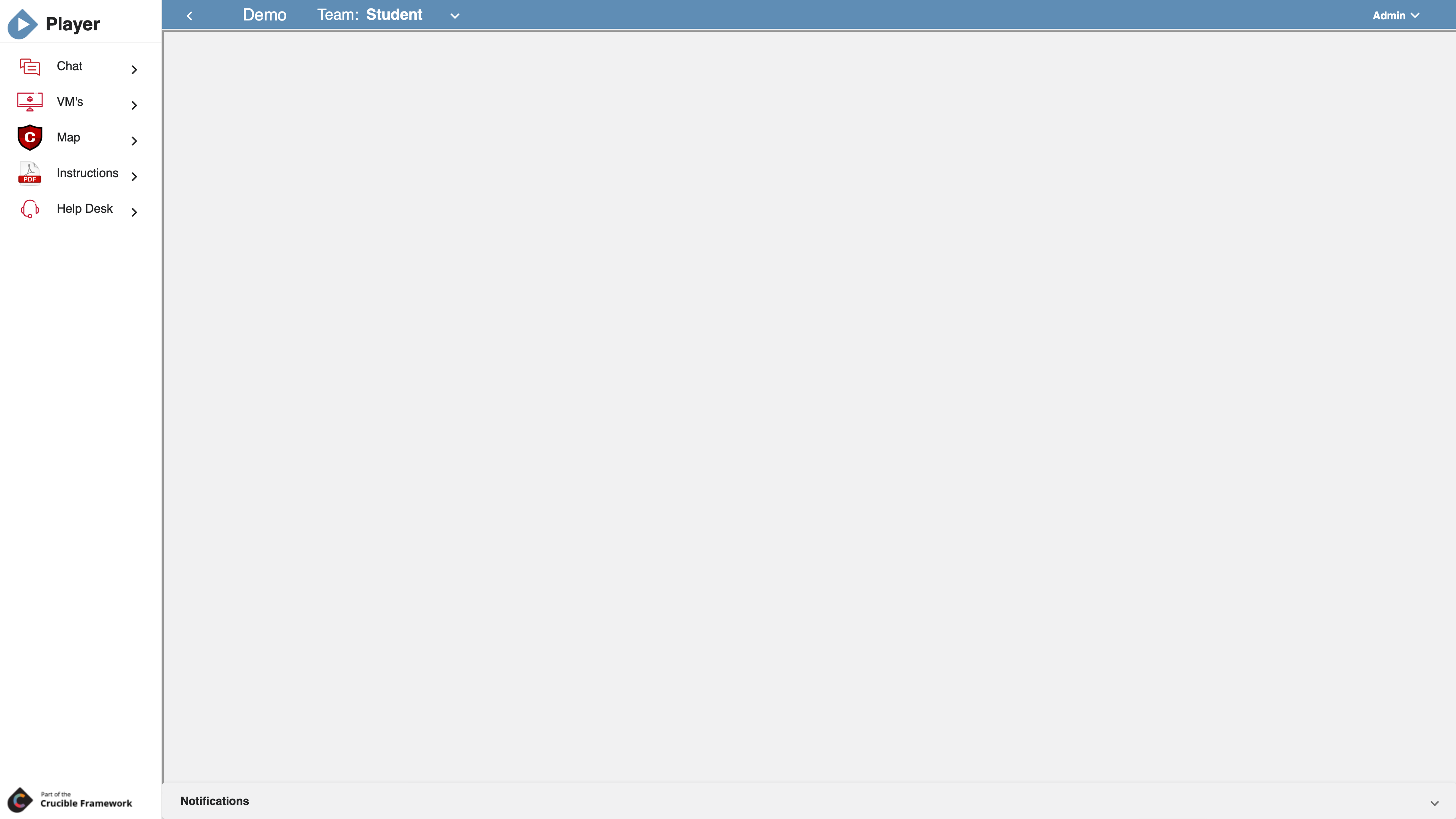

The top bar displays the current view name, team, and the menu select dropdown (your username in the top right).

Player fully supports users who are on multiple teams. Any such user, when logged in, can switch their team by using the team drop-down.

Application Navigation Bar

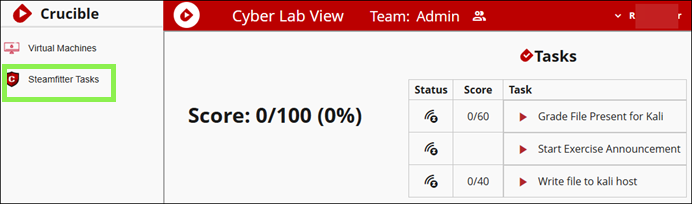

In the view, the navigation bar on the left contains applications.

Documentation

Any documents or files - PDF, PNG, etc. - that can be served on the web can be easily set up as an application for viewing. This is particularly helpful for displaying instructions, intel, maps, and other information.

Maps

View Admins may use the Map application to display a map for a team (e.g. a network map of a lab).

Clicking the Map application will open up the assigned map. Users can click on pre-configured points on the map to open up Virtual Machine consoles, other layers of the map, or any arbitrary URL that a View Admin adds.

Creating and Managing Maps

The Maps application allows Player users who have View Administrator (ViewAdmin) permissions on the view, to create, edit, and delete "clickable" maps of systems and environments in a simulation. A common example of a map is a network topology where selecting a system on the topology launches the associated VM.

Assuming that View Administrator permissions have been granted, in Player add the map application to the view.

Adding the Map application to the view

1. In Player, in your present view, select your user name and then Edit View.
2. Under Applications, select Add New Application then Templates, then Map.
3. The Select Map dropdown and the New Map icon appear in the right pane.

Creating a new map

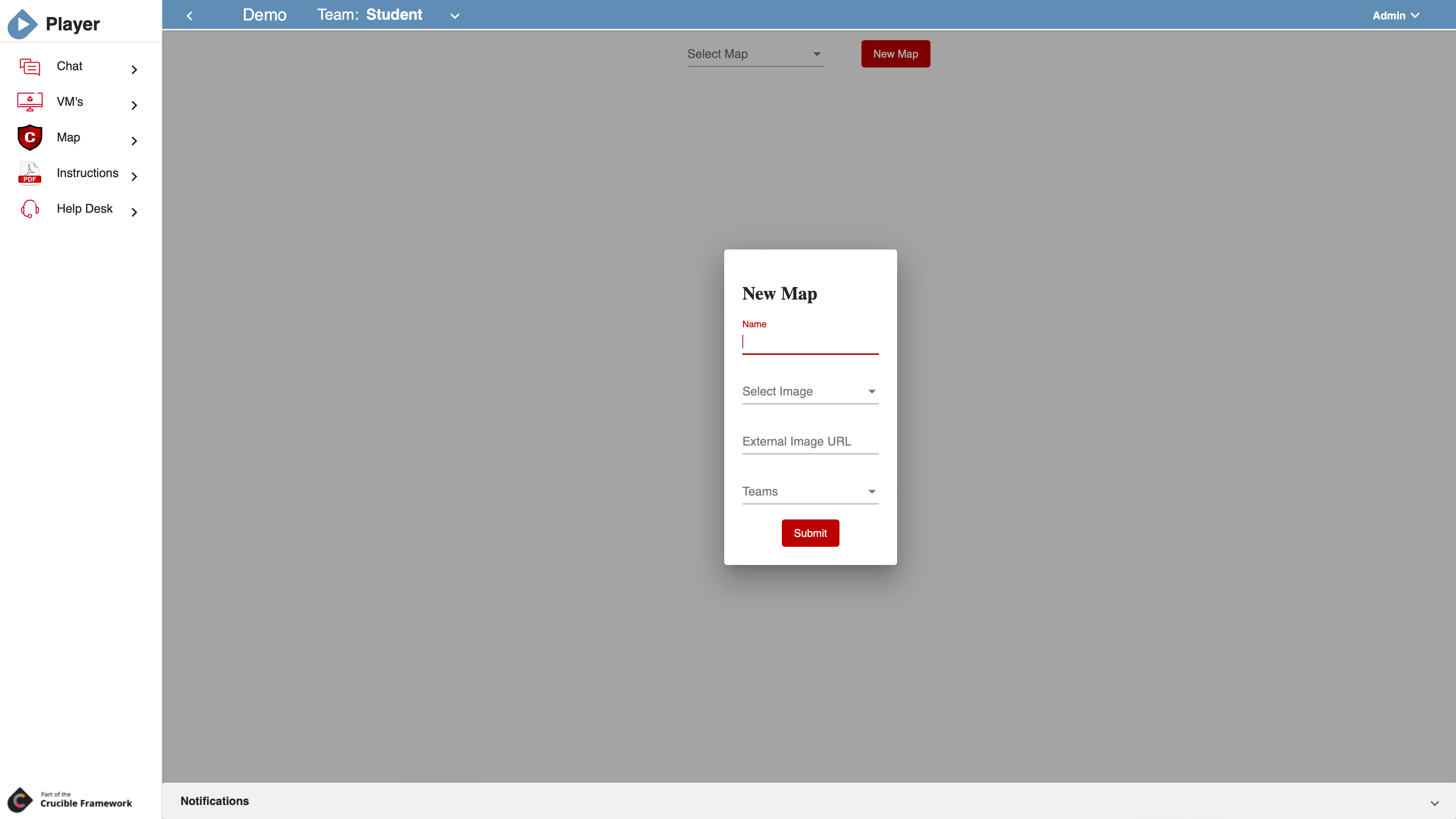

1. In the newly created Map application, in the right pane, select New Map.
2. Complete the following fields:
3. Name: the name of the map.
4. Select Image: from the dropdown, select an image. The images you see here are images that have been previously uploaded to the view by the View Admin and assigned to a team.
5. External Image URL: enter the URL of an external image if no image has been attached to the view or if you want to use a different image than what is available.
6. Teams: only the teams selected here will see the new map.
   > Note that you can select more than one team here.
7. Click Submit. The image of the new map appears in the right pane.

Editing a map

1. In Player's left navigation pane, click the Map application.
2. In the right pane, select a map from the Select Map dropdown.
3. Click the Edit icon. From here, you can:
4. Edit Properties: allows you to change the name, images, and teams of the map.
5. Discard Changes: allows you to discard changes you made to the map; for example, adding a click point.
6. Save: saves your map.
7. Click in the map to add a click point.

Adding a click point

A click point is a location on the map that, when clicked by Player user, launches a resource like a virtual machine in a new tab. To add a click point to the map:

1. In Player's left navigation pane, click the Map application.
2. In the right pane, select a map from the Select Map dropdown.
3. Click the Edit icon.
4. Click anywhere in the map to launch the Add Click Point modal. If your map is a network topology diagram with network elements--routers, switches, firewalls, servers, etc.--then you may want to click on an element that represents the VM resource you want the user to launch.
5. Radius: by default, the value is 3.
6. Resource: this is the virtual machine (or another map) that launches when clicked. The VMs that appear here are the VMs from the VM application in the current view.
7. Enter Custom Resource URL: enable this if you want to link to something other than the view's VMs and maps that are available above. For example, you could place a click point labeled "Linux Help" that links to relevant Linux documentation.
8. Label: this is how the click point is labeled on the map. If your click point is over top of an element that launches a Windows 10 Administrator Workstation, then it makes sense to label it "Win 10 Admin".
9. Click Save to save the new click point in the map.
10. Click Save again to save the map.

Deleting a click point

1. In Player's left navigation pane, click the Map application.
2. In the right pane, select a map from the Select Map dropdown.
3. Click the Edit icon.
4. Click an existing click point.
5. In the Edit Click Point modal, click Delete.

Deleting a map

1. In Player's left navigation pane, click the Map application.
2. In the right pane, select a map from the Select Map dropdown.
3. Click Delete Map.

Virtual Machine Applications

The VM List is set up to provide links to any virtual machines that the user has permission to view. The tabular system allows the VM to be opened similar to an application, within a tab on the same screen or popped out into a new browser tab using the icon. Users can also run commands on one or more virtual machines by dragging a box and shift clicking.

File Upload

A View Admin can upload images and documents for a specific View in Player that provides authentication to download. In addition, that document can be setup to show up as an application in the left hand menu of Player.

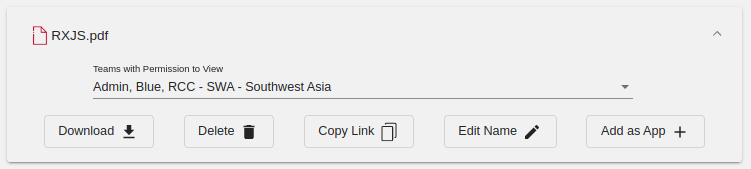

From the File Upload section of the Edit View panel, a View Admin can Download, Delete, Copy Link, Edit Name and Add as App. When adding the file as a Player View application, a prompt will be shown that verifies which teams in the View will see the file get added as an application. Note that it is important that the View Admin gives permission for the file to be viewed by any team that they wish to add the application otherwise the user will not be authorized to view the file.

Multi-Select VMs

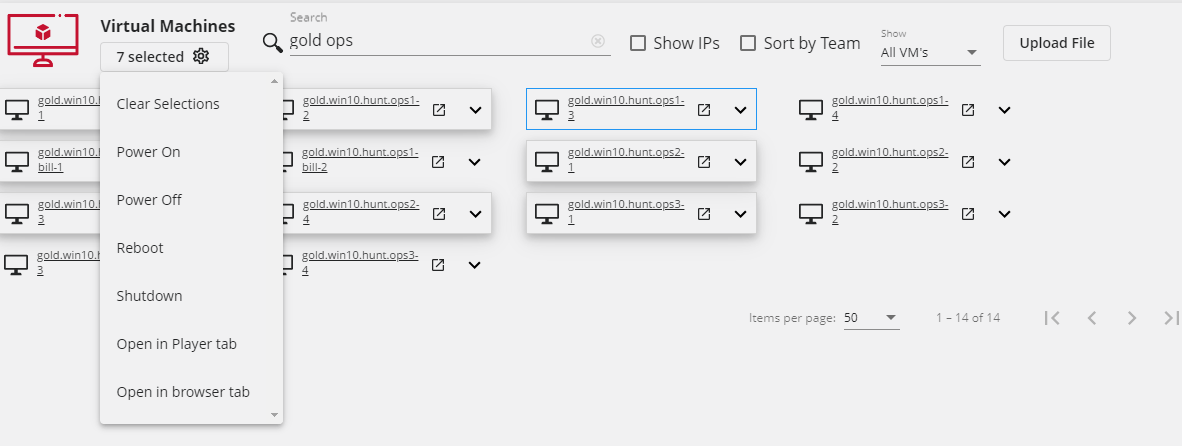

A user can run operations on multiple VM's by first using the mouse to click and drag a box around the VM's that they would like to select. In addition, the user can use the ctrl+click to select or unselect a previously selected VM. Once the user has selected the VM's that they want to perform an operation, the button can be used to display the menu of available options.

For the Multi-Select option above, the following options are available:

• Clear Selections - Unselects all selected VM's
• Power On - Makes an API call to power on the selected VM's
• Power Off - Makes an API call to power off the selected VM's
• Reboot - Makes an API call to perform an operating system reboot of the selected VM's
• Shutdown - Makes an API call to perform an operating system shutdown of the selected VM's
• Open in Player tab - Will create a tab within Player that opens each of the selected VM's
• Open in browser tab - Creates a web browser tab that opens each of the selected VM's

Sort by Team (View Admin Only)

The sort by team option can be checked that will rearrange all VM's in expansion panels based on the the teams that have access to the VM's. In the example shown here, each team can be expanded to show what VM's they have access to. This is especially useful for View Admins when verifying if a specific VM is accessible (or not accessible) for a specific team.

Filter by Powered State

VM's can not be filtered by powered status. By clicking the dropdown, the user can select to display only the Powered On, Powered Off, or Suspended VM's.

User List

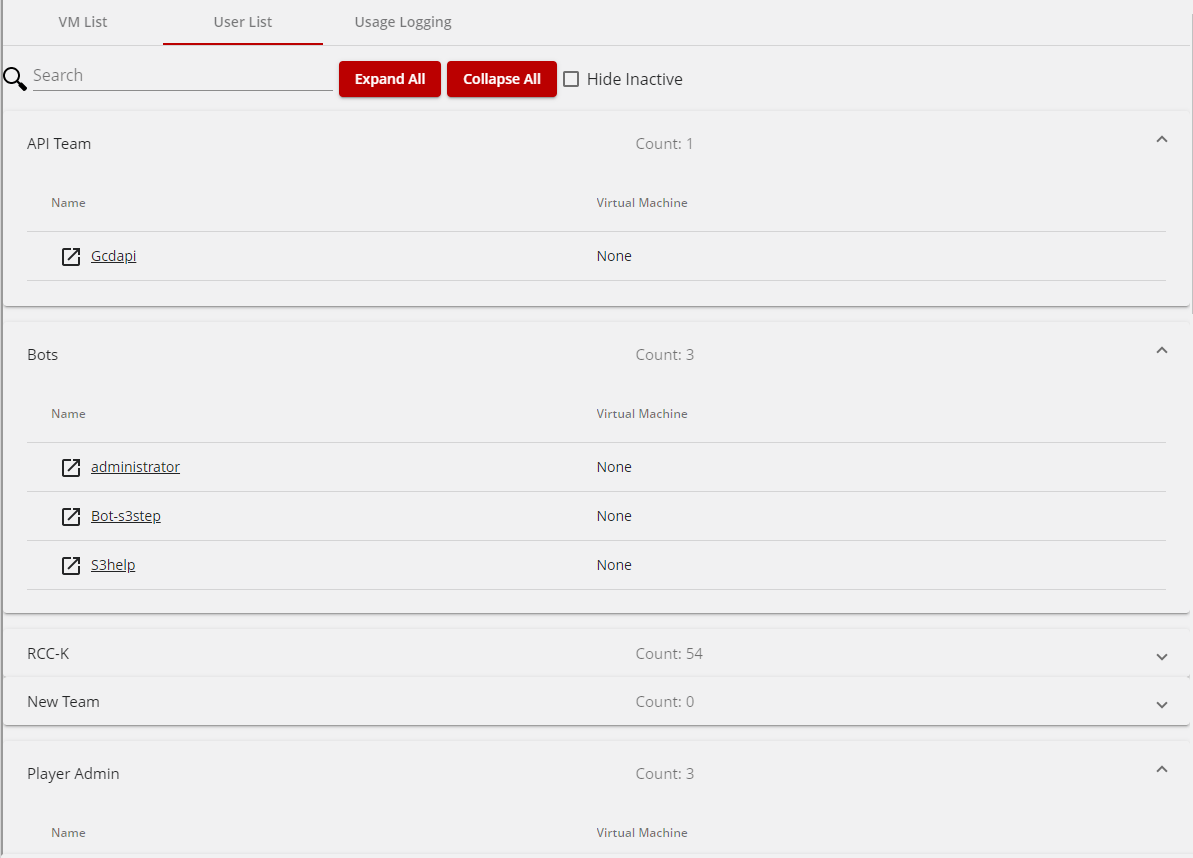

The User List in Player allows for a user to view the teams and its members that the user has permissions to see. Note that View Admins can always see all teams that are a part of the View. Using expansion panels, the user can expand the team and view each member of that team. If a team member is working within a VM, the name of the VM will be displayed with a link to open that VM in Read-Only mode. When in Read-Only mode, the user will not be allowed to gain any keyboard or mouse control.

VM Usage Logging (View Admin Only)

The VM Usage Logging function is a administrative feature that when configured, will record the user activity of when a user interacts with a VM. The configuration must be setup by an administrator to records the specific teams in the view over a specific time period.

Once data has been collected, an View Admin can then download a CSV file that contains the timestamps and the VM machine name that a specific user had accessed during the start and end time of the user logging session.

Service Support Tickets

osTicket (https://osticket.com/), a widely-used open source support ticket system, can be configured and deployed for an exercise. Using this "built-in" help desk, participants can submit help requests to event administrators.

Chat

Mattermost (https://mattermost.com/), an open source messaging platform can be configured and deployed to provide an "off the shelf" chat system for users.

Notifications

Receive and read notifications here.

Tip! If your browser is set up to allow notifications you can receive Player notifications that way too.

Player Tips

Taking Advantage of screen real estate

Player and its component applications (as well as any third party application linked through Player) can take advantage of any monitor setup. Any application in the application bar can be opened up in a new window or a new tab by clicking the [>] button on the right side of the application card. Virtual machine consoles can similarly be opened up in a new window or tab. This allows users to be very flexible with how they display the information presented in Player. Pull up documentation or a lab guide on one monitor while your virtual machine is on another. Use multiple windows with your ultra-wide to see everything at once. The possibilities are endless!

Copy and Paste Text

The procedures below show you how to:

• Copy text from a local machine (that is, an out-of-game computer) and paste it into a Player virtual machine
• Copy text from a Player virtual machine and paste it into a local machine

Procedures assume you are in the Player VM Console app.

From local to Player VM

Note: There is a 64K size limitation to the text block users can copy into and out of Player.

1. On your local machine, open a text file or Word file.
2. Select and copy the text you want to place into a Player virtual machine.
3. In the Player VM Console app, select the virtual machine you want.
4. Select where in the virtual machine you want the copied text to go (this can be a new file or an open application).
5. At the top of the Player window, click Paste. This inserts the copied text into the virtual machine.

From Player VM to local

1. In the Player VM Console app, select the virtual machine you want.
2. On the virtual machine, select the text you would like to copy. Copy your text first to the virtual machine’s clipboard (how you do this depends upon the application you’re using).
3. Once you’ve copied your text to the virtual machine clipboard, click Copy at the top of the Player window. You should then see a Copied Virtual Machine Clipboard confirmation message.
4. On your local machine, paste the copied text into a Notepad file or Word file.

Power a Virtual Machine On or Off

The procedures below show you how to remotely power a VM on or off from within the Player VM Console app. These procedures assume you are in the Player VM Console app.

1. In the Player VM Console app, select the virtual machine you want.
2. On the VM tab, click the gear icon, then Power. You have the menu options to Power On, Power Off, and Reboot.

Upload Files

Upload from local to VM

These procedures describe how to upload files from a local machine (an out-of-game computer) to a virtual machine in the Player VM Console app. Please note the Send File to VM option should only be used for uploading small files.

These procedures assume you are in the Player VM Console app.

1. In the Player VM Console app, in the VM List, launch the virtual machine you want.
2. On the VM tab, click the gear icon, and then select Files, Send File to VM.

If the Send File to VM option is grayed out you will have to enter the credentials used to log into the virtual machine. Select Enter VM Credentials. In the VM Send File Settings window, enter the Destination File Path, Username, and Password. Click Done. Any user registered for the exercise will have the virtual machine credentials.

1. After entering your credentials, select the Send File to VM option (this should no longer be grayed out).
2. Select the file from your local machine that you want to upload.
3. Click Open. This will copy the file to the destination folder specified in the VM Send File Settings window.

Upload files and mount ISO

These procedures describe how to upload files from a local machine to be mounted as a DVD (files are not uploaded directly to a virtual machine – it’s a two-step process). This is useful for installers and uploading larger files (such as ISO files).

1. In the VM List screen, click Upload File.
2. On your local machine, select the file you want to upload (the upload may take some time depending upon the file size, so you will see a progress bar highlighting the upload progress).
3. Click Open.
4. On the VM tab, click the gear icon, and then select Files, Mount File to DVD.
5. In the Search box that opens look for and select the uploaded file that you now want to mount.

Note that there are two file areas: Team Files and Public Files. Files can be mounted for only your team (under Team Files) or any team (under Public Files).

1. Click Mount. This process automatically mounts the file as a DVD Drive ISO.
2. After the ISO has been mounted/used for file copy, right-click the DVD Drive ISO and and select Eject to eject the ISO.

Follow Another Player

The user follow feature in Player allows you to virtually look over a participant’s shoulder during a scenario. This is a useful feature when helping someone troubleshoot and for team members who are geographically separated. This can also be used by observers when evaluating or watching teams perform during an event.

To follow another participant:

1. In Player, in the left sidebar, select the Virtual Machines application.
2. In the main Player window, select User List.

   If you are a View Administrator (ViewAdmin), then you will see all the teams and all the participants. Otherwise, you will just see the team you are on and your teammates.

3. Locate the participant in the scenario.
4. Use the Search feature to search on a participant's username if you know it.
5. Click Expand All to expand the teams to see all of the participants.
6. Click Collapse All to collapse the teams.
7. Select a team to expand it and see its participants.
8. Check Hide Inactive to display only those participants who are working in a virtual machine at the moment.
9. Click the participant’s name. Now, you can see the console display for the virtual machine that the person is on in the main Player window.
10. Click the icon next to the participant's name to follow that participant in a new browser tab.

If the person switches virtual machines then your display automatically follows them. You can’t interact with them while following; and, if their virtual machine goes out of focus then following stops.

Clicking the gear icon in the upper left of the display you are following gives you the options to Open In New Tab and Reconnect. If you are already in a new browser tab, then you will see the Fullscreen option.

Glossary

The following glossary provides a brief definition of key terms and concepts as they are used in the context of the Player application.

Apps: A website a participant in a view can open within Player or in a separate browser tab. A common example of an app used in Player is the Mattermost messaging platform.

App Template: The settings associated with an app that is added to a team's View. An app template can be created for common apps that are added to a view with default settings that an administrator can override if needed.

Authentication: Player uses IdentityServer 4 to authenticate users. Authentication gets a user into Player. However, to determine what a user can open and/or edit within Player, administrators need to set the required permissions within the Player Administration View under the Users Administrator tab.

Focused Application Panel: The focused app panel displays the selected application in an iFrame. The iFrame points to the URL specified by the application template. The application within the focused app panel is responsible for authentication and content. Player displays content but has no control of the application running within the focused app panel.

Notification: A message sent to a specific user, team, or view from an Administrator or an app that has been given permission.

Permission: A key/value pair that can be created and used by any application given permission within the system. A permission can be assigned to a user or a team. Some permissions such as SystemAdmin are read-only. ExerciseAdmin and SystemAdmin are permanent permissions that cannot be edited or deleted.

Role: A set of permissions that can be grouped together and assigned to a user or team.

Team: A group of logged in users who are associated with a view. Each team can be configured to view a particular set of applications and be granted team-level roles/permissions.

User: A user who is identified in an Identity Server configured for the Player system is automatically added into Player upon the first login. In addition, users can be pre-loaded into Player using the Player API.

Note: IdentityServer4 is an OAuth 2.0 framework that is used by the Software Engineering Institute to authenticate users. Some Identity servers are configured to authenticate using CAC cards while others are user/password based - depending upon the location of the system.

View: These are the settings associated with building a view. A view can be edited, cloned, and deleted.

Views: The collection of content a participant can interact with during a cyber simulation. Depending upon your role (end-user vs administrator) a view will look different.
